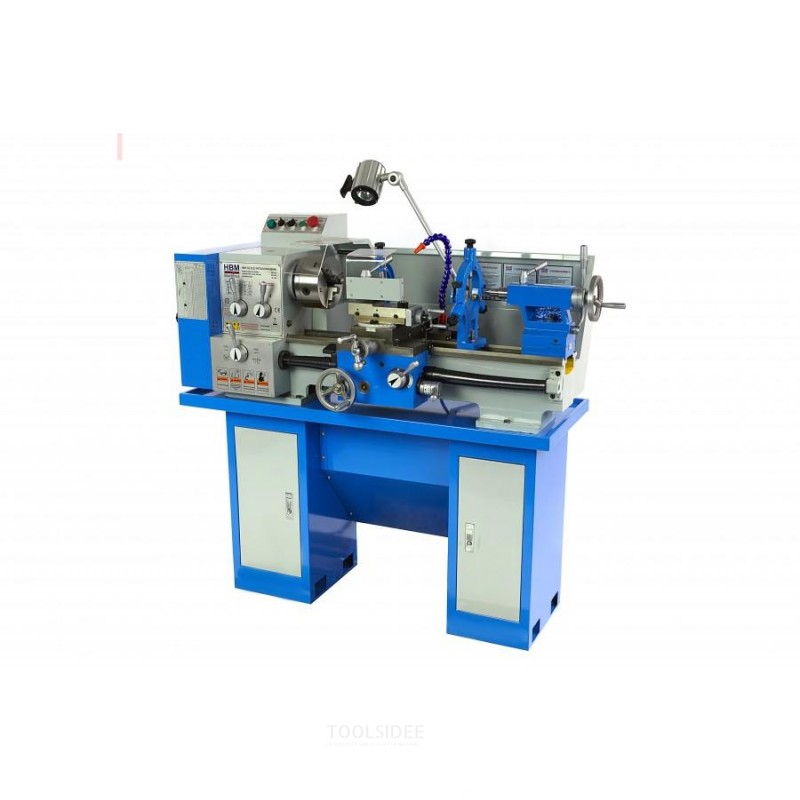

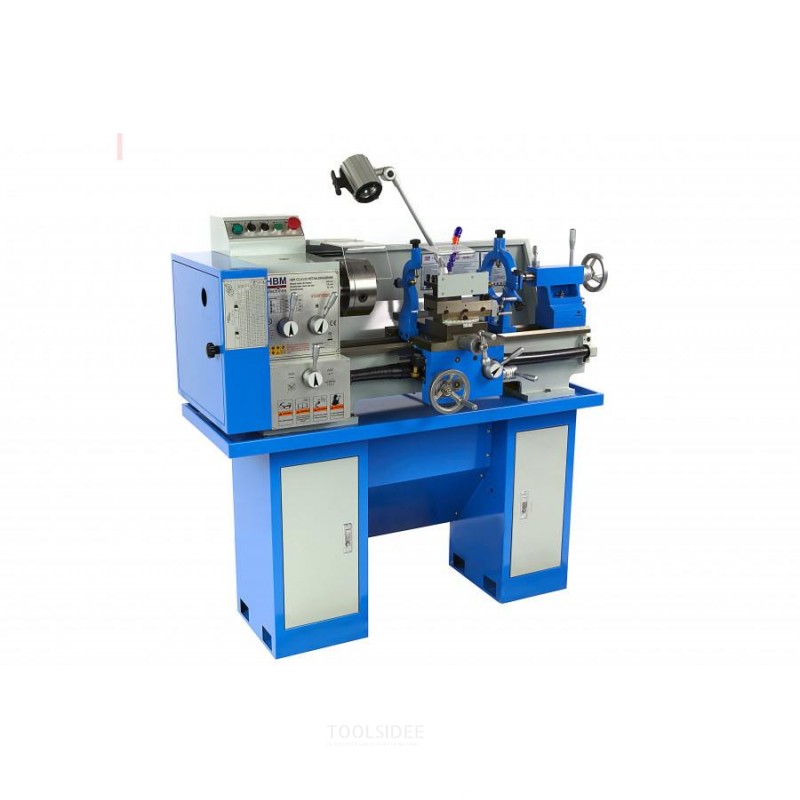

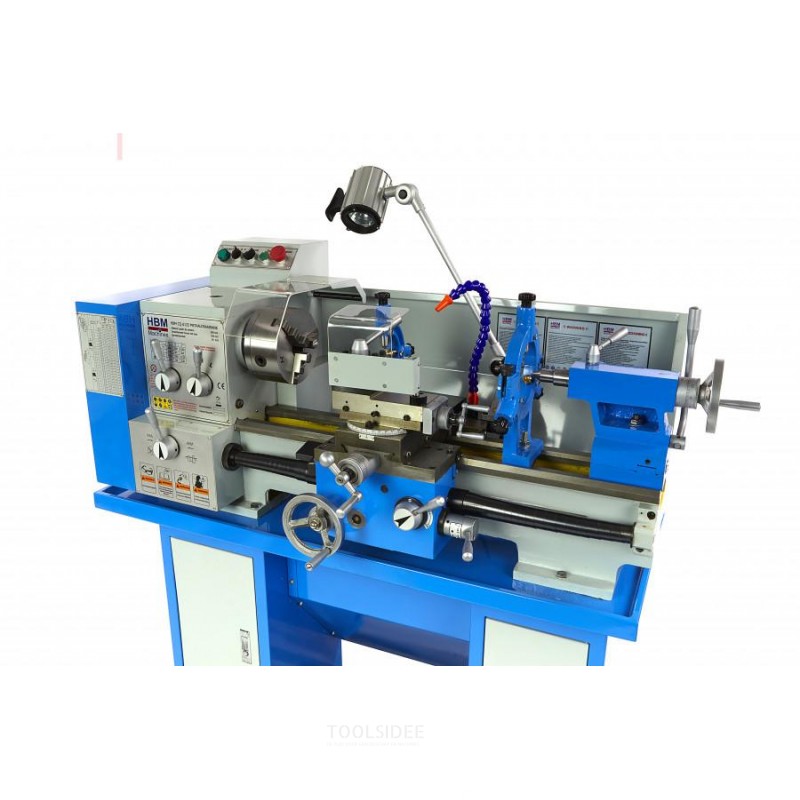

HBM 330 X 600 Metal Lathe Complete

HBM 330 X 600 Metal Lathe Complete

Name: HBM 330 X 600 Metal Lathe Complete
Price: 4536.80 USD
Availability: InStock
Rating: 8.2 (1818 reviews)

from 4536,80

(Inc. 23% VAT - explanation)

Price includes shipping costs to Kýpros

1 variants available

In stock

Delivery time: 3 - 4 business days
Reflection period: 14 working days
This product is shipped FREE

Available variants

hbm 330 x 600 metal lathe complete - 230 voltsout of stock
hbm 330 x 600 metal lathe complete - 400 volts$ 4536,80 In my shopping cart

Description

The HBM 330 Perfect for hobbyists and professionals alike, this lathe offers accuracy and reliability.

Recording of the main axis: MC 5
200 mm clamping plate
Chewing plates and support protection
4-way chisel holder
Loose glasses and fixed glasses
Threading clock

Specifications:

Turning diameter above the bed: 320 mm
Turning diameter above the cross support: 220 mm
Center height: 170 mm
Recommended chisel size: 16 x 16 mm
Distance between centers: 600 mm
Chuck diameter: 160 mm
Bed width: 160 mm
Displacement of the cross support: 160 mm
Displacement of the cone support: 100 mm
Diameter of the main axle: 38 mm
Chuck mounting: Flange mounting
Speed range: 60 to 1650 rpm
Threading range imperial (withworth): 9 - 40 TPI (20 positions)
Metric threading range: 0.5 - 4 mm (17 positions)
Spindle stroke: 75 mm
Pinole diameter: 35 mm
Recording of the pinole: MC 3
Engine power: 1100 Watt / 1.5 HP
Thread size lathe fixed on frame: 10 x 35 mm (4x)
Weight: 340 kg
Installation dimensions: 138 x 74 x 119 cm
Packaging dimensions: Box 1: 133 x 77 x 65 cm, Box 2: 36 x 32 x 68 cm, Box 3: 36 x 32 x 68 cm

With the HBM 330 X 600 Metal Lathe Complete you have a complete and reliable lathe for all your metalworking projects. Order now and get started right away!

Article number: 18036-E
